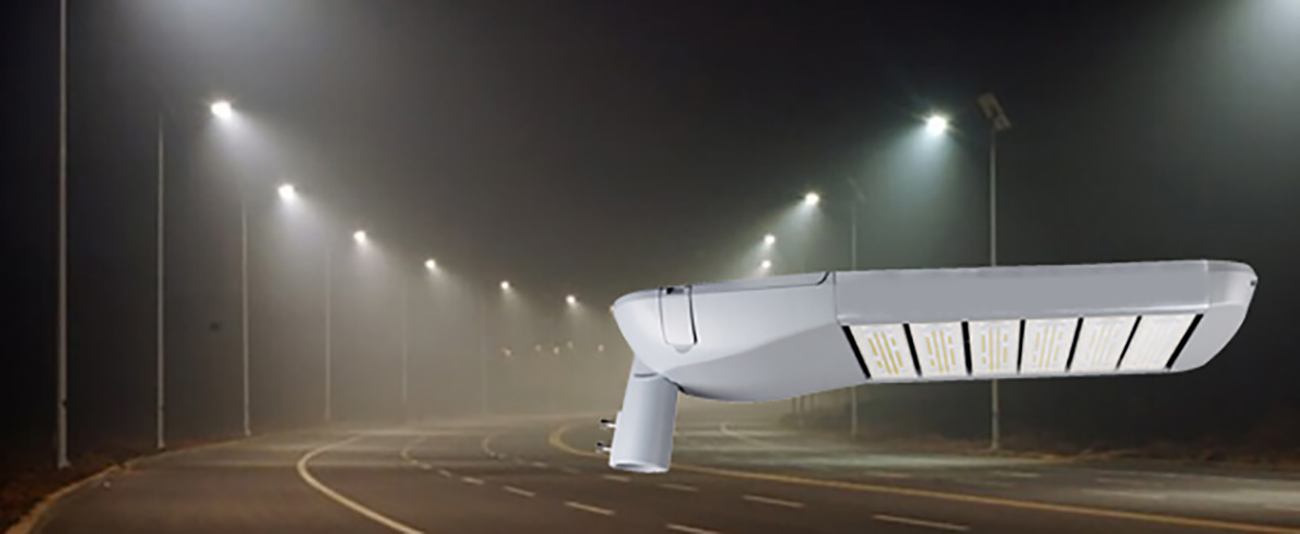

China Manufacturer Led Street Lighting Road Lamp AGSL04
PRODUCT DESCRIPTION
Professional Manufacture LED Street Light High Power Outdoor Waterproof Lighting Street Light AGSL04
-Adopting imported led chips as light source. Energy-saving, environment protecting and long life.
-5mm toughened transparent lens , high temperature resisting, easy for lights penetration, transmittance as high as 92%.
-The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.
-.Constant current supply, good stabilize and high security.
-Energy sawing up to 80%.
-Good-Looking shape, easy installation
-Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on..
-Lampshade material: Die cast aluminum housing, Toughened safety lens, painting coating.
-The metal part which is between pole and street light is designed as original pole size.
SPECIFICATION
|
MODEL |
AGSL0401 |
AGSL0402 |
AGSL0403 |
AGSL0404 |
AGSL0405 |
AGSL0406 |
|
System Power |
50W |
100W |
150W |
200W |
250W |
300W |
|
Luminous Flux |
7500lm |
15000lm |
22500lm |
30000lm |
37500lm |
45000lm |
|
Lumen Efficiency |
150 lm/W(170-190 lm/W optional) |
|||||
|
CCT |
2200K-6500K |
|||||
|
CRI |
Ra≥70 (Ra＞80 optional) |
|||||
|

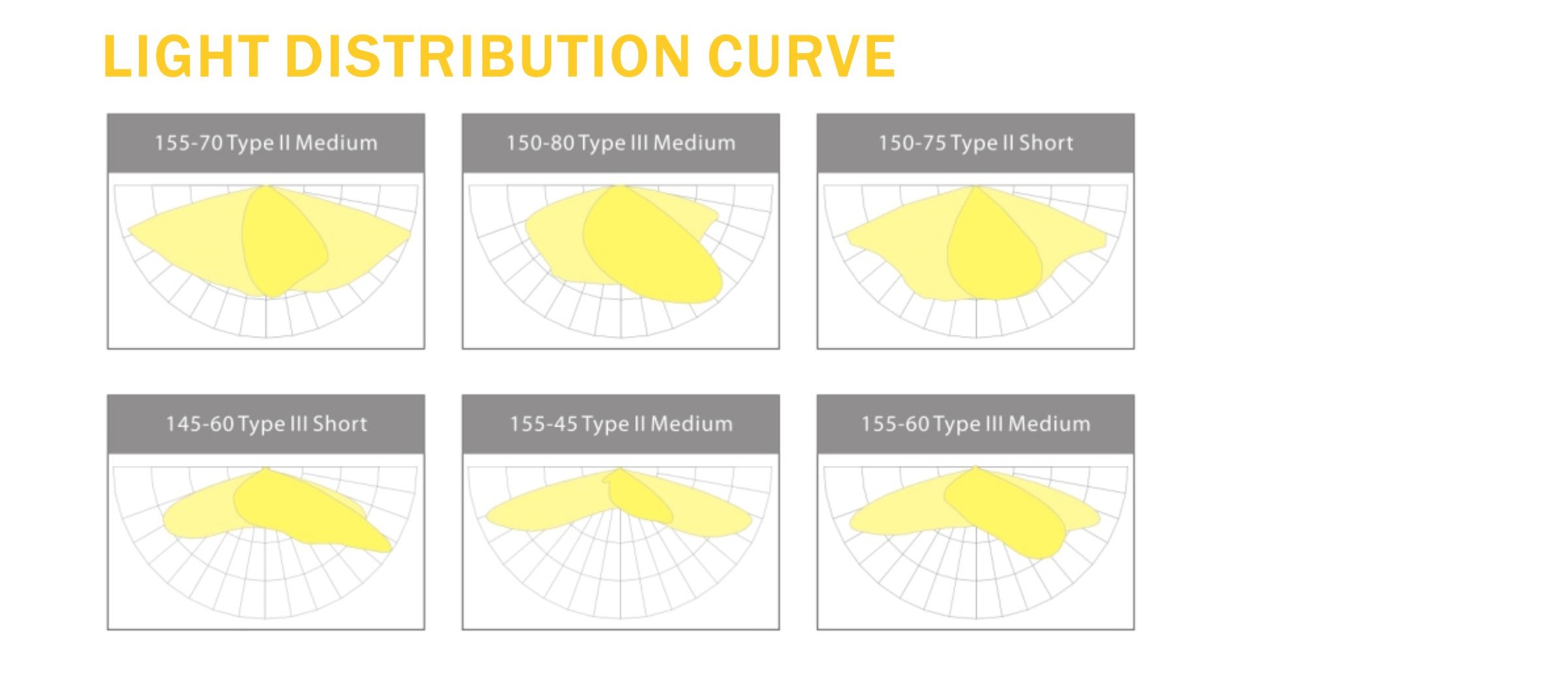

Beam Angle |
Type II-S,Type II-M,Type III-S,Type III-M |
|||||
|
Input Voltage |
100-277V AC(277-480V AC optional) |
|||||
|
Power Factor |
≥0.95 |
|||||
|
Frenquency |
50/60 Hz |
|||||
|
Surge Protection |
6kv line-line, 10kv line-earth |
|||||
|
Drive Type |
Constant Current |
|||||
|
Dimmable |
Dimmable(0-10v/Dali 2 /PWM/Timer)or Non Dimmable |
|||||
|
IP ,IK Rating |
IP66, IK09 |
|||||
|
Opreating Temp |
-20℃ -+50℃ |
|||||
|
Lifespan |
L70≥50000 hours |
|||||
|
Warranty |
5 Years |
|||||

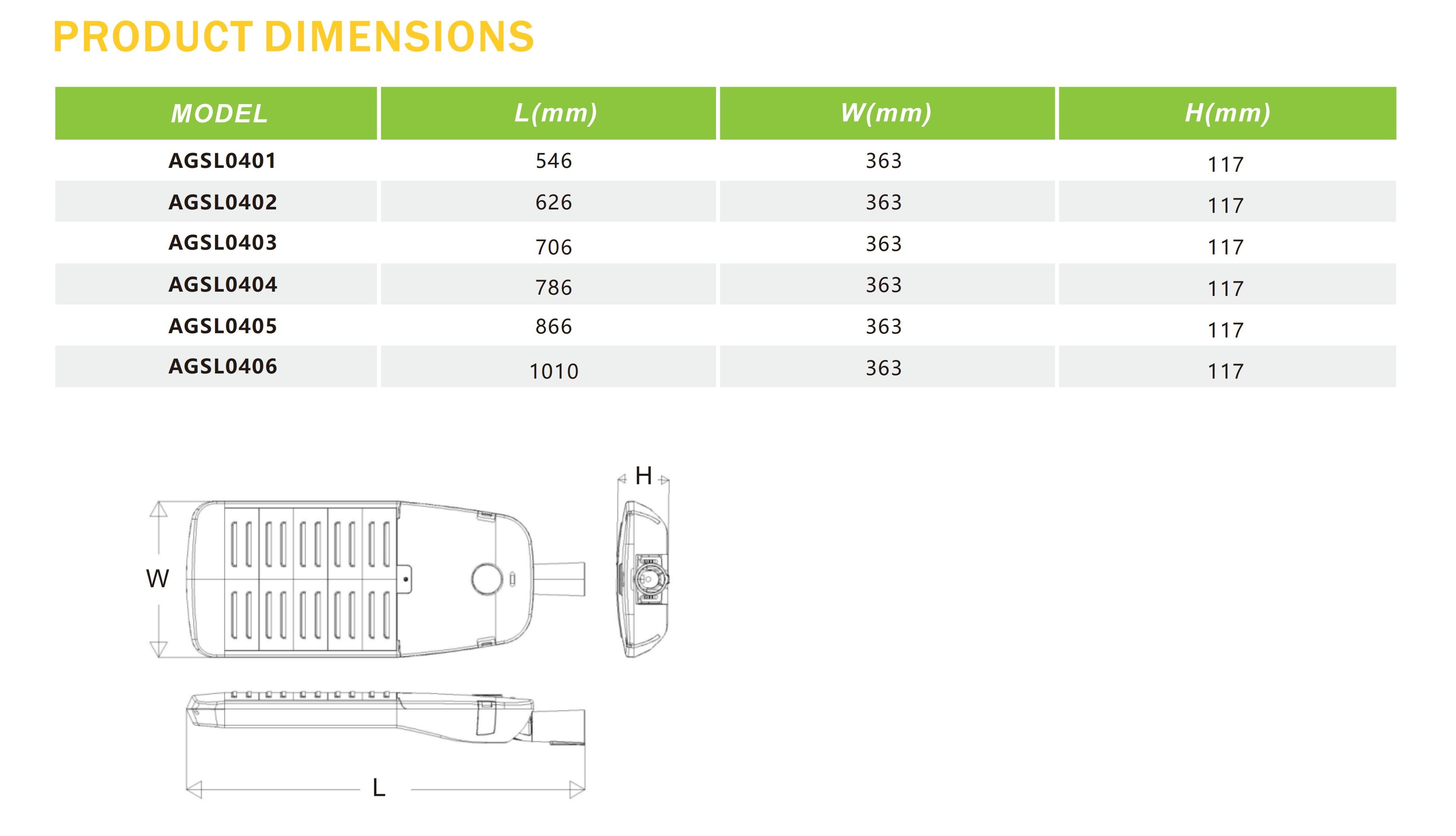

DETAILS
APPLICATION
Professional Manufacture LED Street Light High Power Outdoor Waterproof Lighting Street Light AGSL04 Application: streets, roads, highways, parking lots and garages, residential lighting in remote areas or areas with frequent power outages etc.
CLIENTS FEEDBACK

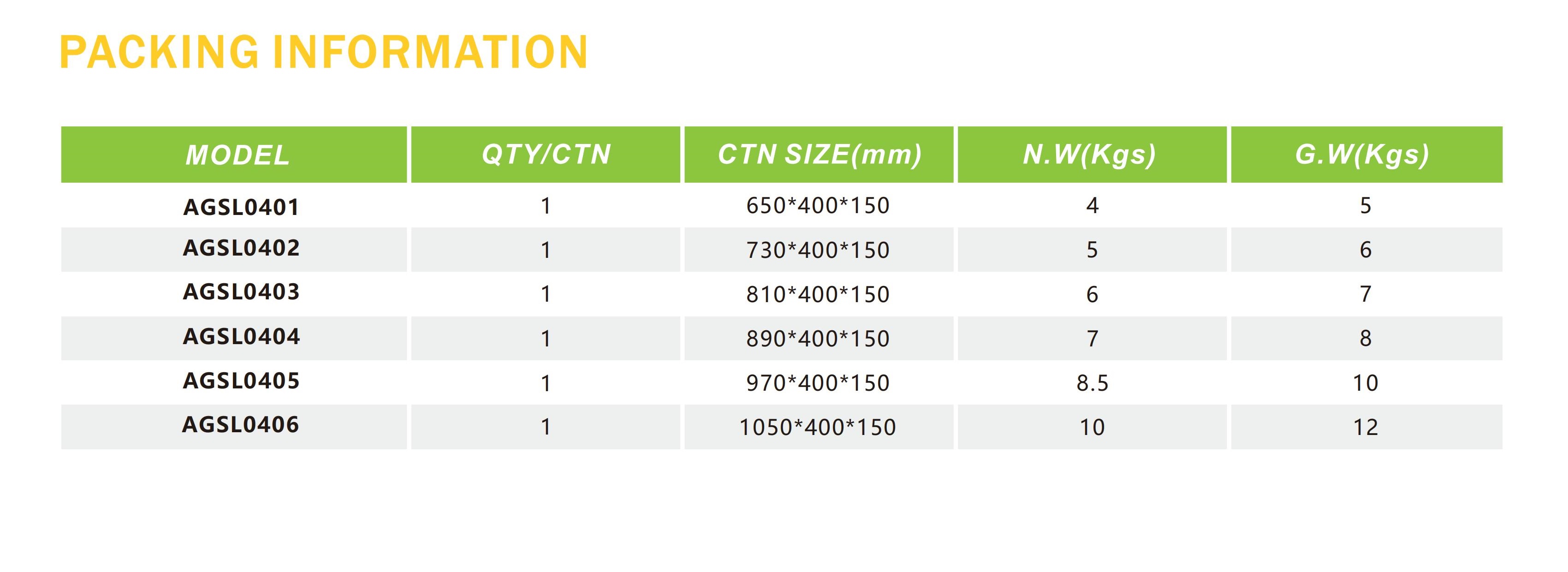

PACKAGE & SHIPPING
Packing: Standard Export Carton with Foam inside, to well protect the lights. Pallet is available if needed.
Shipping: Air/Courier: FedEx,UPS,DHL,EMS etc. as per clients’ need.
Sea/Air/Train shipments all are available for Bulk Order.
