AllGreen 30W-150W AGSS11 Solar LED Street Light 220 lm/W IP65 IK08 MPPT Radar Sensor Outdoor Lighting
Product Description
High Performance Solar LED Street Light AGSS10
1.Light efficacy up to 210lm/wmore energy-saving, more secure to use
2.High lumen 3030/5050/7070 SMD LED chip
3.All in one aluminum body, Anti-oxidation.No rust,fast heat dissipation, lP66 waterproof.
4.Superlarge monocrystalline silicon solar panel, moreefficient conversion of electricity, more energy-saving, brighter.
5.Special drainage hole design.
Specification
| Parameter | AGSS1101 | AGSS1102 | AGSS1103 | AGSS1104 | AGSS1105 | AGSS1106 | AGSS1107 |
| LED Power | 30W | 40W | 60W | 80W | 100W | 120W | 150W |
| Solar Panel | 18V/55W | 18V/67W | 18V/85W | 18V/100W | 18V/120W | 18V/150W | 18V/180W |
| Battery | 3.2V,75AH | 3.2V,105AH | 12.8V,30AH | 12.8V,45AH | 12.8V,60AH | 12.8V,75AH | 12.8V,90AH |
| LED Quantity | 28PCS | 56PCS | 56PCS | 84PCS | 112PCS | 112PCS | 140PCS |
| Luminous Flux | 6600LM | 8800LM | 13200LM | 17600LM | 22000LM | 26400LM | 33000LM |
| Charging time | 4-6hours | ||||||
| Post Diameter | 60/76mm | ||||||
| Lumen Efficiency | 220 lm/W | ||||||
| CCT | 2700K-6500K | ||||||
| CRI | Ra≥70 | ||||||

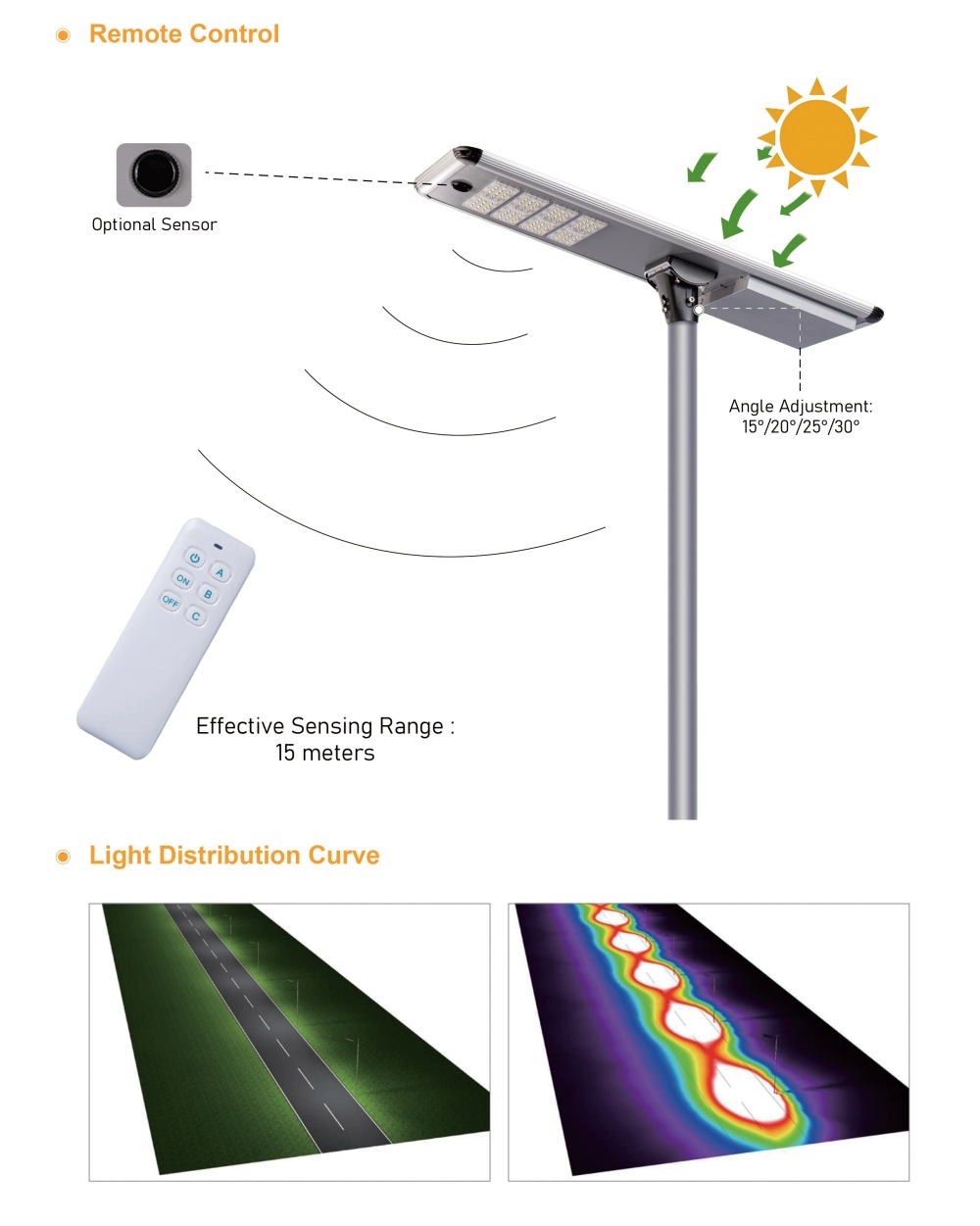

| Beam Angle | T2M:160*8, T3S:117*52°, T4S:140*110°, T5:150° Optional | ||||||
| Cycle life | 3000 times, SOH/80% | ||||||

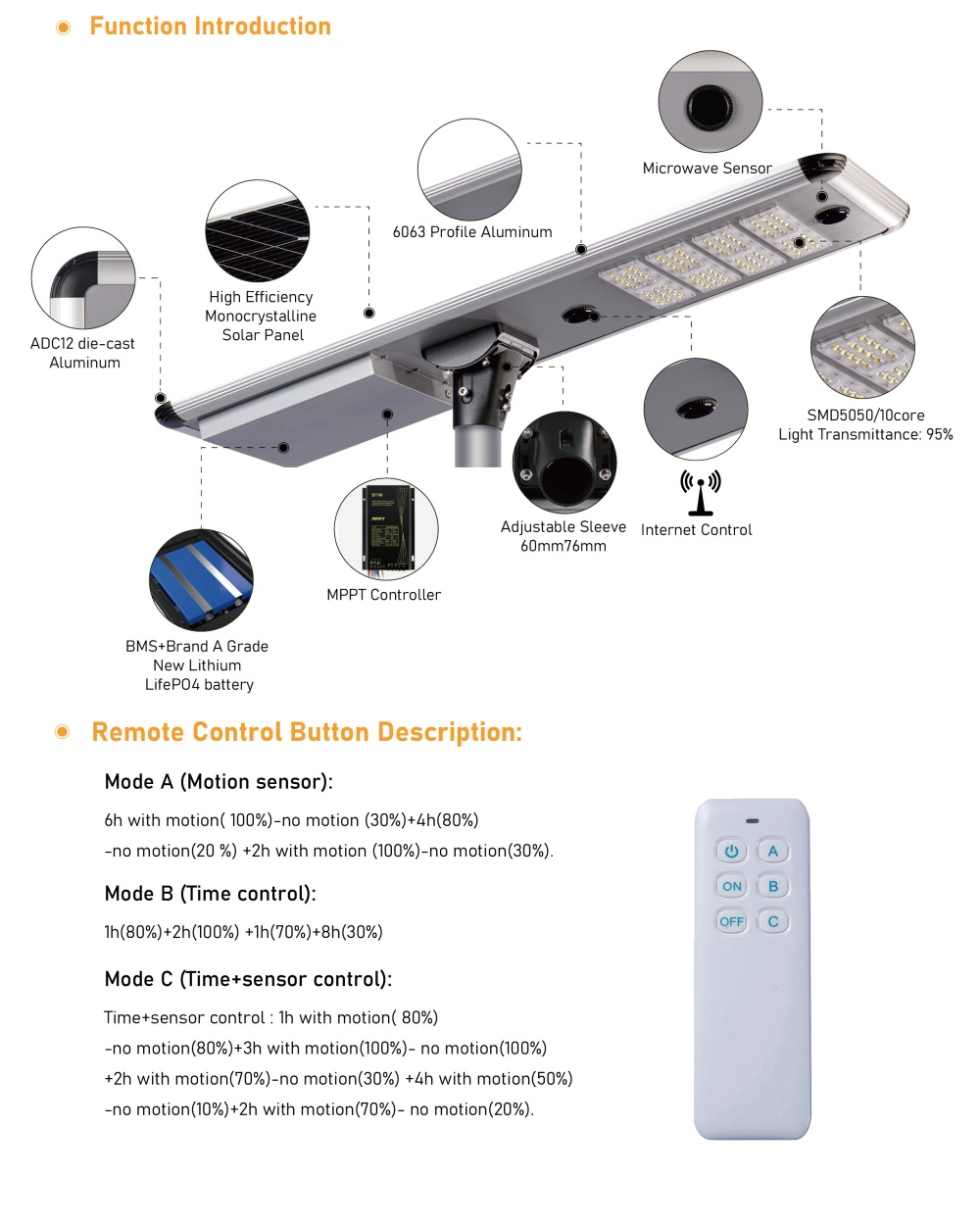

| Lighting Mode | Intelligent control + segmented time control (Optional) | ||||||
| Frequency | 50/60 Hz | ||||||
| Material | AL6063+ADC12+1060 pure aluminum | ||||||
| IP & IK Rating | IP65,IK09 | ||||||
| Operating Temp. | -20ºC ~ +65ºC | ||||||
| Discharge time | 2-3 rainy days | ||||||
| Controller | MPPT controller + intelligent light control + time control + radar sensing | ||||||

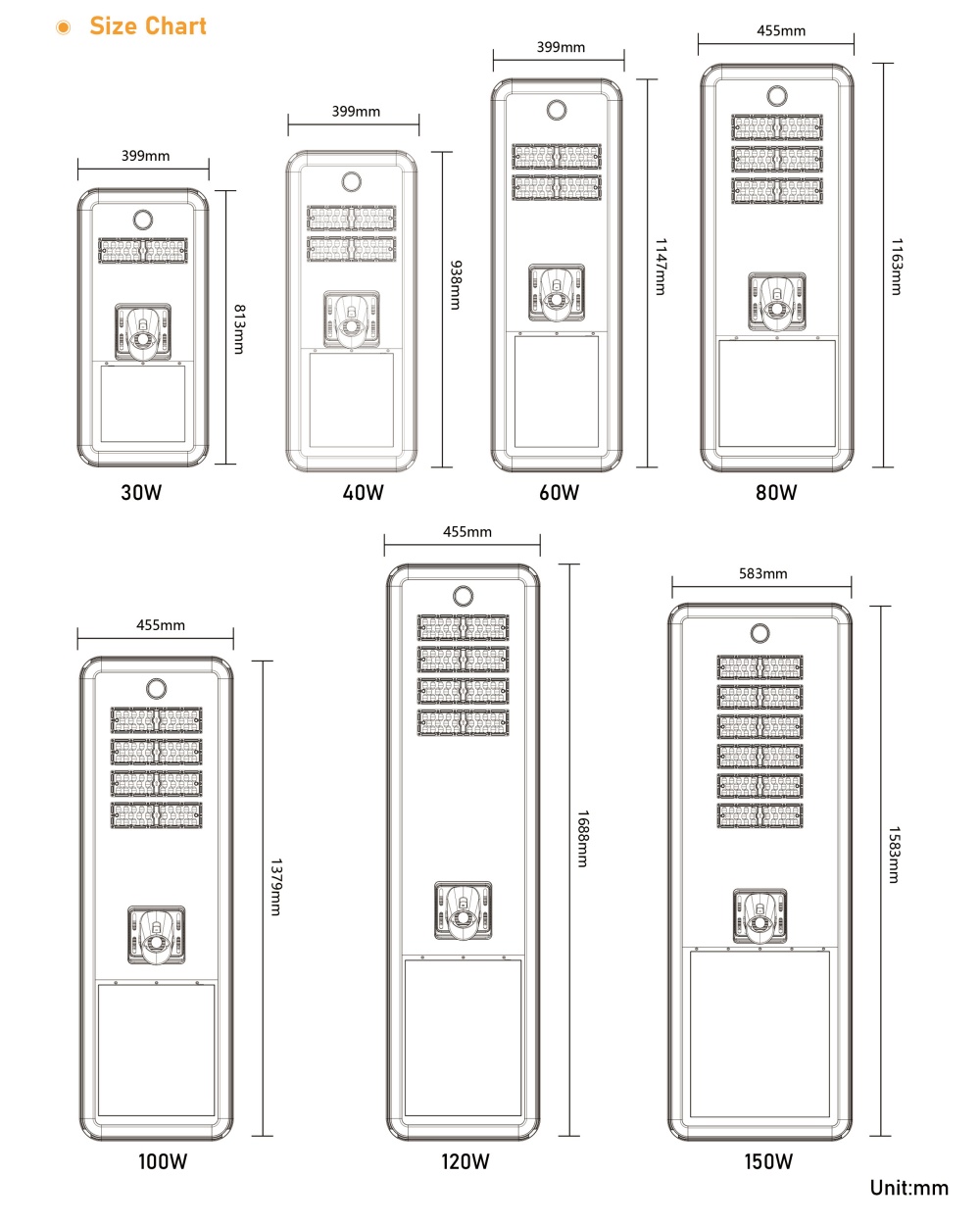

| Product Size(mm) | 813*400*70 | 935*400*70 | 1143*400*70 | 1163*465*70 | 1380*465*70 | 1688*465*70 | 1585*585*70 |
| N.W. | 10.3KG | 11.6KG | 13.4KG | 15.8KG | 18.6KG | 21.8KG | 28KG |
DETAILS
Clients Feedback
Application
High Performance Solar LED Street Light AGSS08 Application: streets, roads, highways, parking lots and garages, residential lighting in remote areas or areas with frequent power outages etc.
PACKAGE & SHIPPING
Packing: Standard Export Carton with Foam inside, to well protect the lights. Pallet is available if needed.
Shipping: Air/Courier: FedEx,UPS,DHL,EMS etc. as per clients’ need.
Sea/Air/Train shipments all are available for Bulk Order.
