40W-120W AGSS10 High Performance Solar LED Street Light
Product Description
High Performance Solar LED Street Light AGSS10
1.Light efficacy up to 210lm/wmore energy-saving, more secure to use
2.High lumen 3030/5050/7070 SMD LED chip

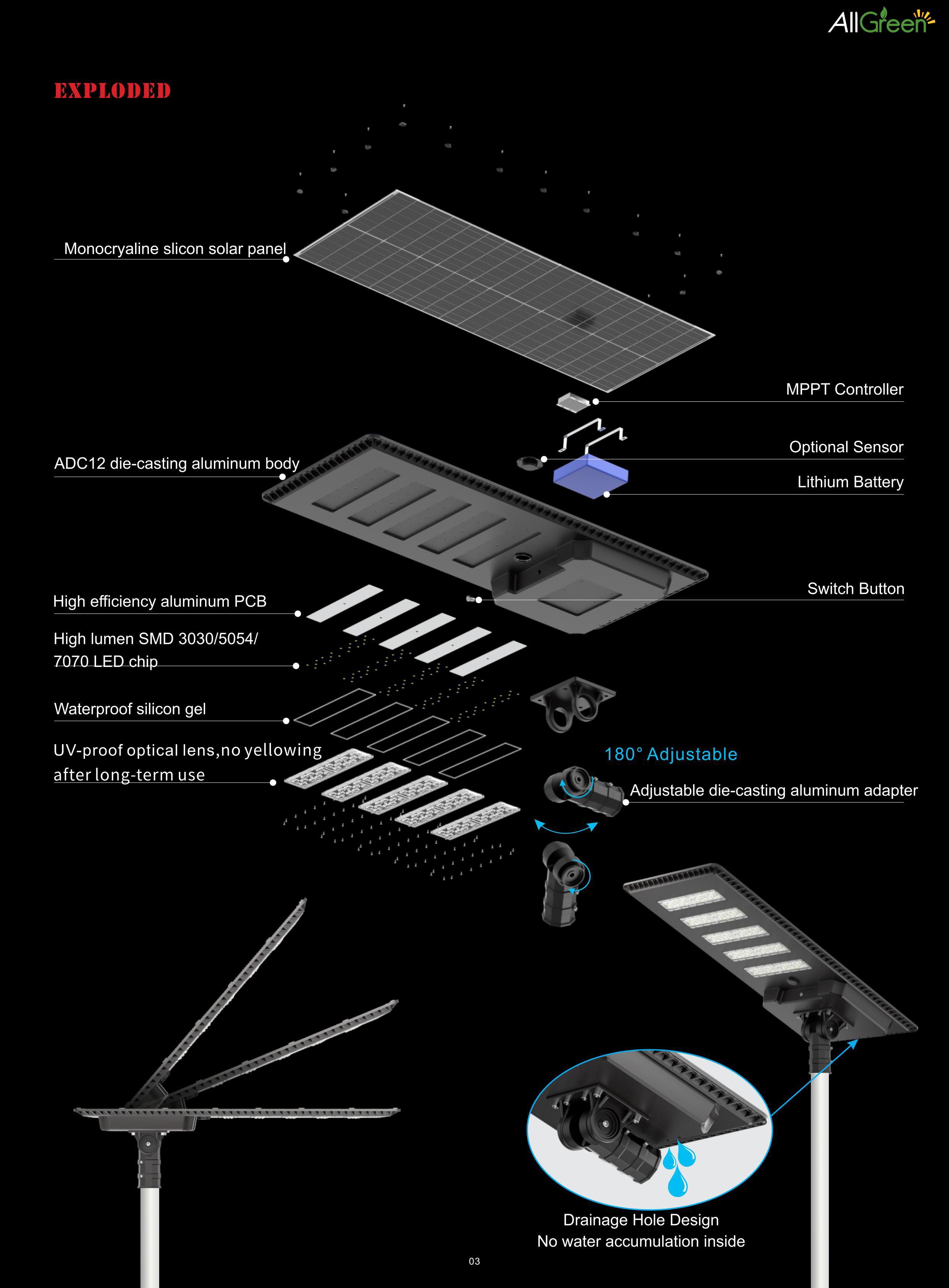

3.All in one aluminum body, Anti-oxidation.No rust,fast heat dissipation, lP66 waterproof.
4.Superlarge monocrystalline silicon solar panel, moreefficient conversion of electricity, more energy-saving, brighter.
5.Special drainage hole design.

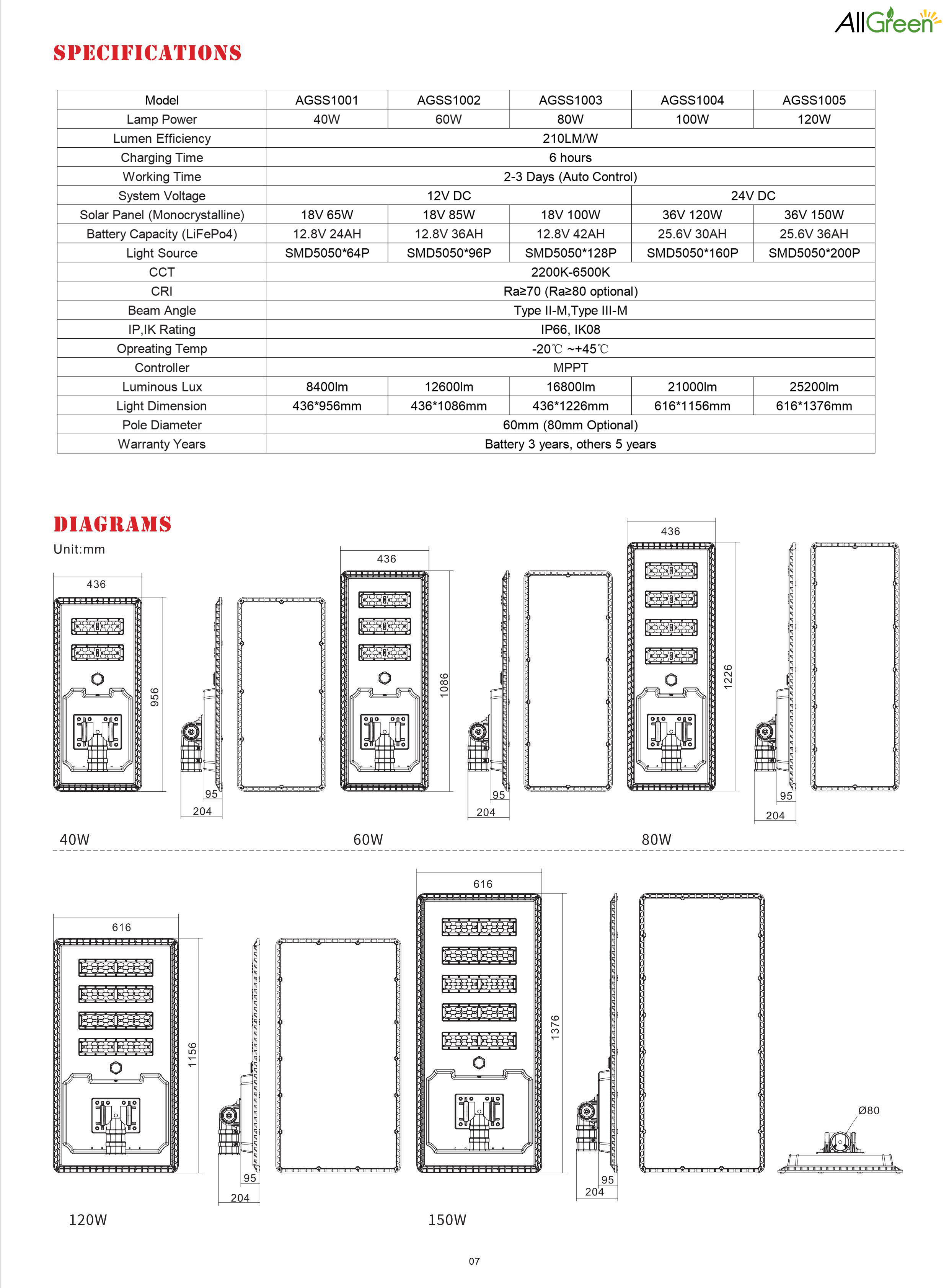

Specification
Model |
AGSS1001 |
AGSS1002 |
AGSS1003 |
AGSS1004 |
AGSS1005 |
System Power |
40W |
60W |
80W |
100W |
120W |
Luminous Lux |
8400lm |
12600lm |
16800lm |
21000lm |
25200lm |
Lumen Efficiency |
210 lm/W |
||||
Charging Time |
6 hours |
||||
Working Time |
2-3 Days (Auto Control) |
||||
Solar Panel (Monocrystalline) |
18V 65W |
18V 85W |
18V 100W |
36V 120W |
36V 150W |
Battery Capacity (LiFePo4) |
12.8V 24AH |
12.8V 36AH |
12.8V 42AH |
25.6V 30AH |
25.6V 36AH |
Light Source |
SMD5050*64P |
SMD5050*96P |
SMD5050*128P |
SMD5050*160P |
SMD5050*200P |
CCT |
2200K-6500K |
||||
CRI |
Ra≥70 (Ra≥80 optional) |
||||
Beam Angle |
Type II-M,Type III-M |
||||
System Voltage |
12V DC |
24V DC |
|||
IP,IK Rating |
IP66,IK08 |
||||
Opreating Temp. |
-20℃ ~+45℃ |
||||
Controller |
MPPT |
||||
Pole Diameter |
60mm (80mm optional) |
||||
Warranty |
Battery 3 years,others 5 years |
||||
Option |
PIR Sensor & Timming |
||||
Product Dimension |
436*956*204mm |
436*1086*204mm |
436*1226*204mm |
616*1156*204mm |
616*1376*204mm |
DETAILS
Clients Feedback
Application

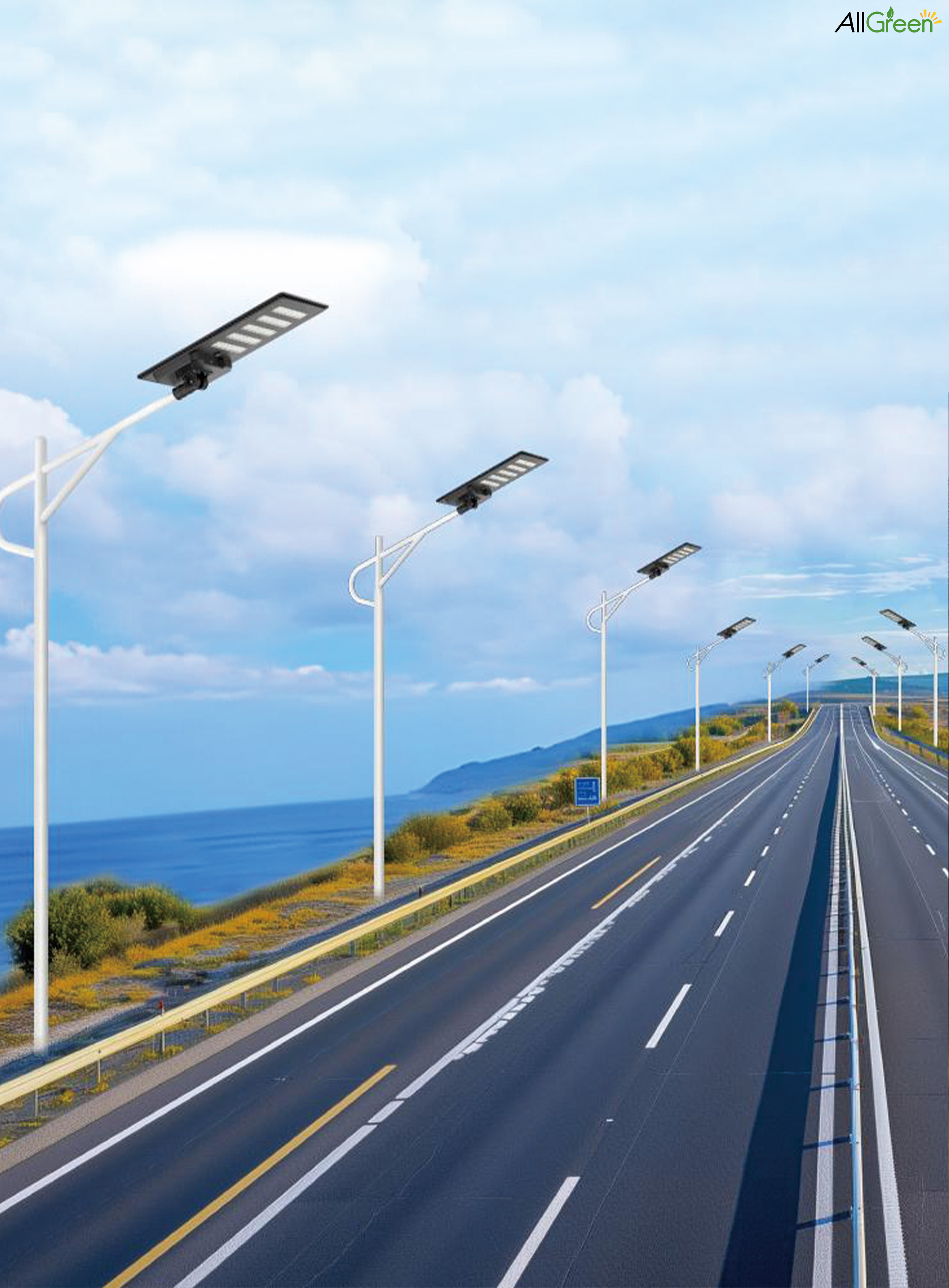

High Performance Solar LED Street Light AGSS08 Application: streets, roads, highways, parking lots and garages, residential lighting in remote areas or areas with frequent power outages etc.
PACKAGE & SHIPPING
Packing: Standard Export Carton with Foam inside, to well protect the lights. Pallet is available if needed.
Shipping: Air/Courier: FedEx,UPS,DHL,EMS etc. as per clients’ need.
Sea/Air/Train shipments all are available for Bulk Order.
